HELLA

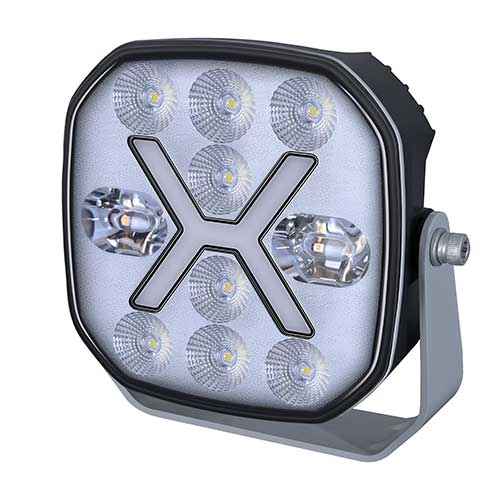

SPF2200 Work Lamp

The HELLA SPF2200 delivers 2200 lumens of powerful light, with integrated white and red position lights plus day and night warning flash. Designed for rear mounting on trucks and agricultural machinery, it suits a wide range of demanding applications.

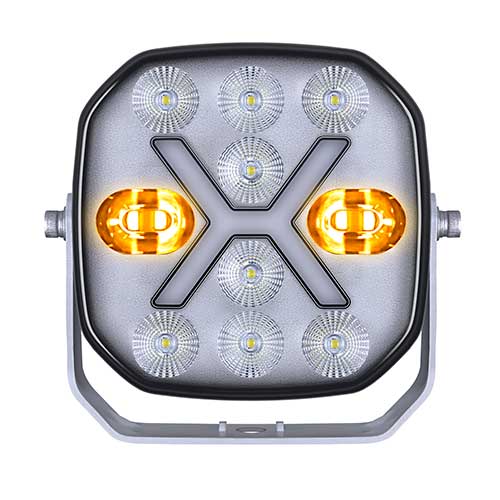

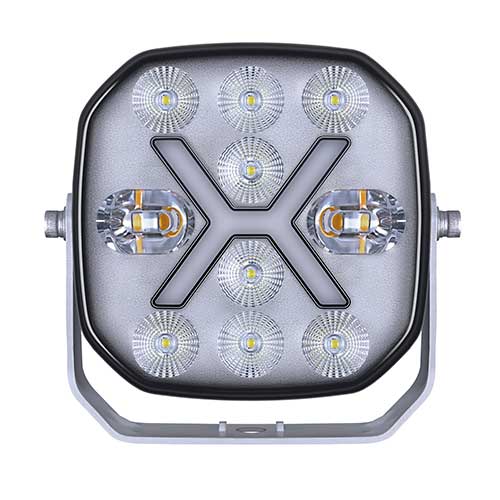

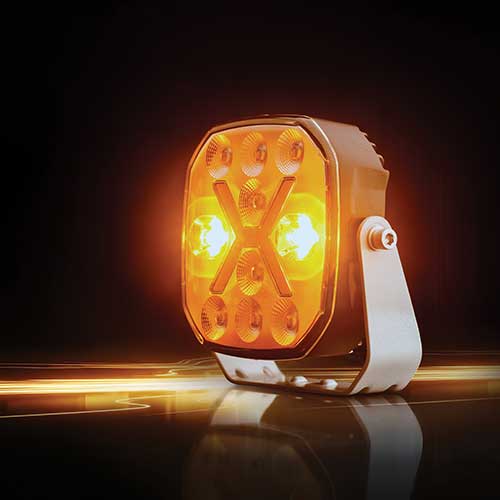

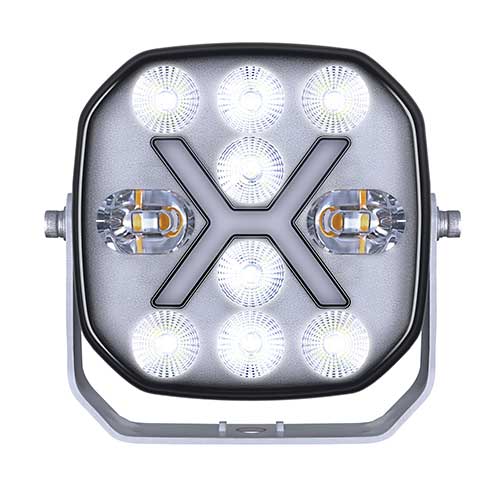

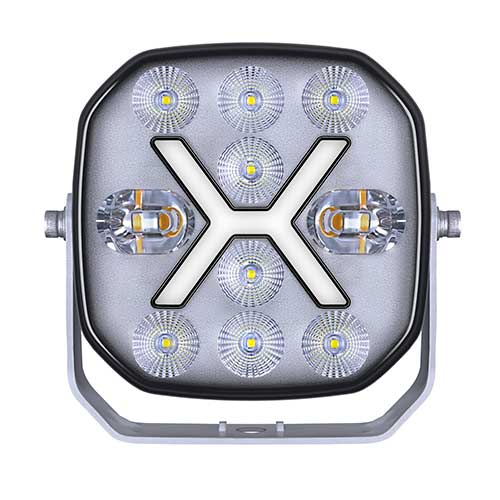

SPF2200 Main Work Light Mode  SPF2200 Amber Warning Flash Mode  SPF2200 Red Position Light Mode  SPF2200 White Position Light Mode
 Work Light  Warning Flash  Red Position  White Position



A die-cast aluminium housing, impact-resistant lens, and IP 6K7 and IP 6K9 protection provide long-term durability in harsh working environments. Flexible upright or pendant mounting adds installation versatility. Position lights intended for off-road use (non-compliant).

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Options

SPF2200 Work Lamp (Close Range)

PART NO: 1GA 357 400-001

Specifications

Mounting

Suitable for upright or pendant mounting.

Voltage

Multi-voltage for optimum brightness at input voltages from 10 to 30 volts.

Power Consumption

Work lamp: 22W
Position light, White: 3.4W
Position light, Red: 3.6W
Warning flash function: 9.7W

Max. Light Output

2200 lumen

Colour Temperature

5700 Kelvin

Materials

Housing: Die-cast aluminium
Lens: Impact resistant Polycarbonate
Bracket: Stainless Steel

Cable

1000mm cable

Protection

Reverse polarity and transient spike protection
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9 (Protection against dust and high-pressure/steam jet cleaning)

Weight

930g

Compliance

ECE R10  CISPR 25 Class 3 CE

Outline

All dimensions in mm.
All dimensions in mm.

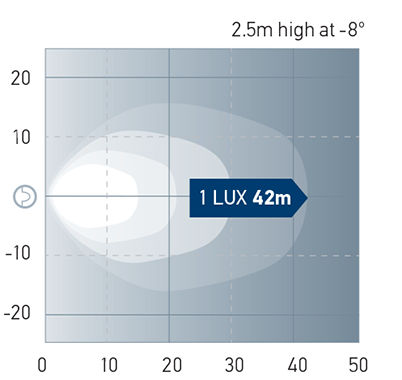

Light Output

Documents

Document File Name File Size
  HELLA SPF2200 Work Lamp Product Release_Web.pdf 365.50 KB
  IS_460_879-67_WEB_07-25 nz.pdf 3.17 MB
