HELLA

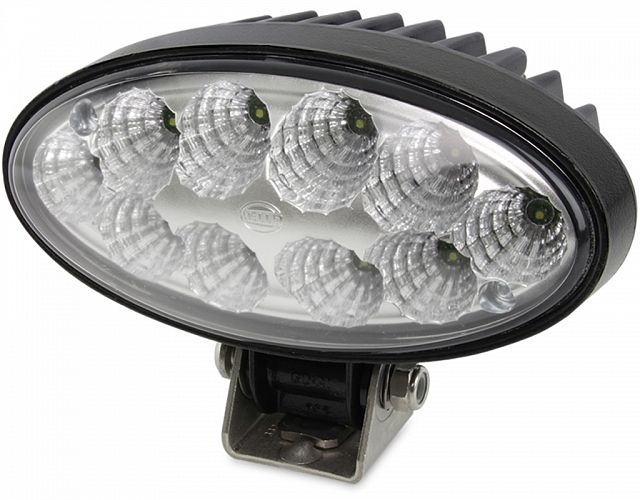

Oval 90 LED Work Lamp

Oval 90 LED work lamp featuring 10 high performance LEDs for an intense light output housing and nylon lens. Suitable for close range or long range illumination.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Grilamid<sup>®</sup> is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Grilamid® Lens

Grilamid® is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Benefits include strength and corrosion resistance.

Stainless Steel Bracket

Benefits include strength and corrosion resistance.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Options

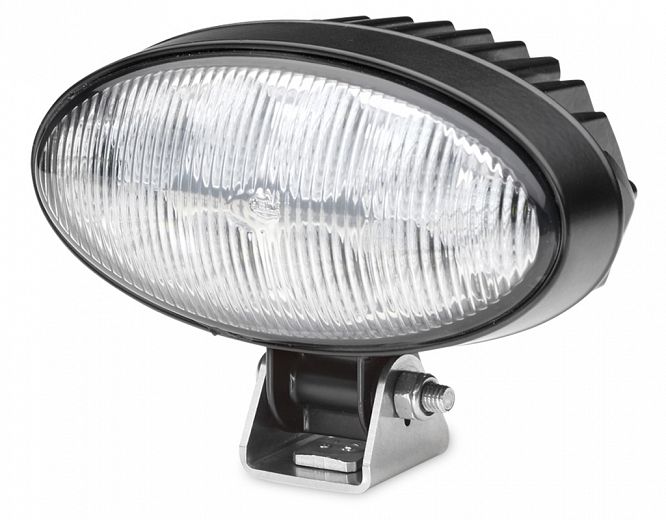

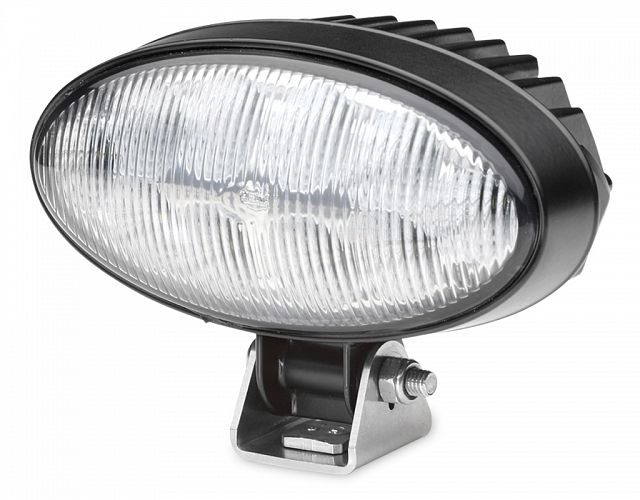

Oval 90 LED Work Lamp - Close Range

Oval 90 LED Work Lamp - Close Range

PART NO: 1GB 996 386-101
Legacy PN: 1559

Add to favourites

Specifications

Mounting

Upright or pendant.
36mm mounting lug with washers.

Voltage

Multivolt™ for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

28W

Max. Light Output

2000 lumen

Protection
Reverse polarity and voltage spike protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Supplied with 2m of sheathed multi-core cable and DT plug.

Spare Part
9.1549.05 Plug and lead 1.25mm2
9.1557.05 Plug and lead 0.75mm2

Lens Material

Grilamid®

Compliance
E1 CE

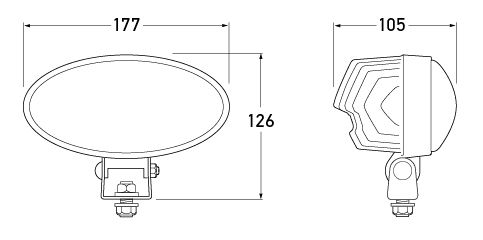

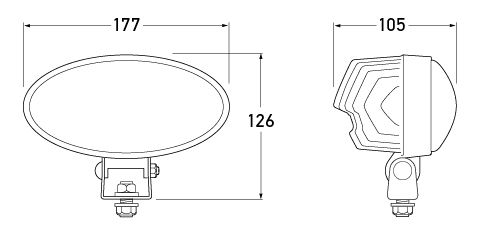

Outline

All dimensions in mm.
All dimensions in mm.

Light Output

Beam pattern: Oval 90 - Close Range
Beam pattern: Oval 90 - Close Range

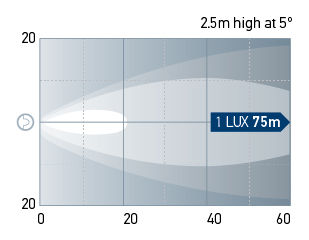

Beam pattern: Oval 90 - Long Range. One Lux represents the intensity of the light of a full moon (under clear atmospheric conditions) or just sufficient light by which to read a newspaper.
Beam pattern: Oval 90 - Long Range. One Lux represents the intensity of the light of a full moon (under clear atmospheric conditions) or just sufficient light by which to read a newspaper.
