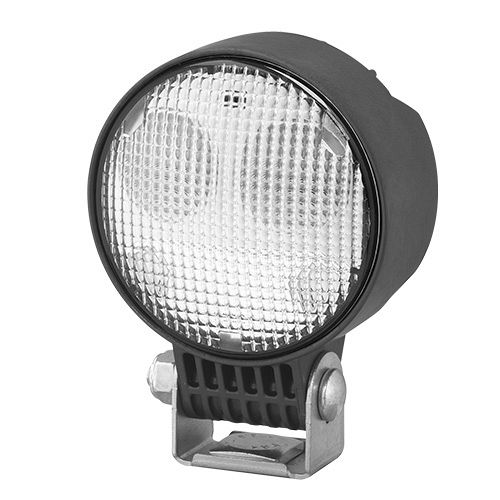

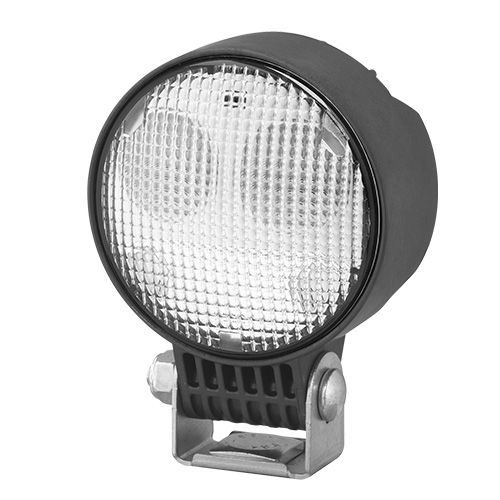

Module 70 S-Series Reverse lamp

The Module 70-S Reverse lamp provides significantly more light output than OEM vehicle reverse lighting, for much greater visibility and safer manoeuvring when reversing.

Homogeneous illumination with a light colour similar to daylight (5,000 Kelvin) is easier on the eyes for prolonged periods. A robust thermal design ensures high efficiency, and a long operating lifetime. These lamps lightweight housing and cover lenses are made in high corrosion resistance plastics. They are also IP6K7 and IP6K9K rated for environmental and water proofing.

Experience brighter, more reliable lighting with reduced power consumption and a body built to withstand the elements.

  • Higher performance than OEM Lighting
  • Longer life and higher efficiency vs halogen
  • Low weight and high corrosion resistance

Note: M70-S Reversing Light does not include a DT cable, which can be ordered separately if required (See optional accessories in Specifications tab, or suggested Related Products tab).

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

Corrosion Proof

Benefits include strength and corrosion resistance.

Stainless Steel Bracket

Benefits include strength and corrosion resistance.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Options

Module 70 S-Series Reverse lamp - Extra Wide

PART NO: 2ZR 996 776-501

Specifications

Mounting

Upright or pendant.

Materials

Housing: heat-conductive plastic
Cover lens: impact-resistant plastic
Bracket: Stainless Steel

Power Consumption

12W

Voltage

Multivolt™ for optimum brightness at input voltages from 9-32V DC

Max. Light Output

1150 lumen

Colour Temperature

5000 Kelvin

Temperature range

-40°C to +85°C (overheating protection)

Protection

Reverse polarity protection.
IP6K7 (Protection against dust and prolonged water immersion)
IP6K9K (Protection against dust and high-pressure/steam jet cleaning)

Connection

DEUTSCH DT connector

Accessories

8KB 958 757-501 DT Connector - 2 Pole Plug with 2.0m of Sheathed Multi-core Cable
8JA 959 736-811 DT Connector - 2 Pole Plug Kit
8KA 958 360-001 DT Connectors - 2 Pole Plug, Socket and Switch Accessories

Compliance

ECE R10, ECE R148  CISPR 25 Class 5 (12V) and Class 4 (24V)  CE

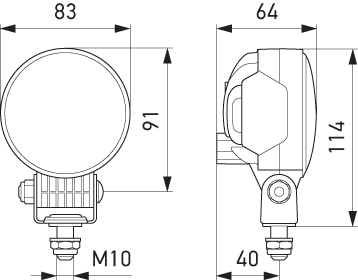

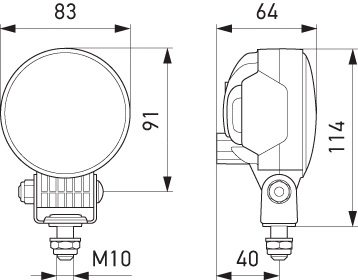

Outline

All dimensions in mm
All dimensions in mm

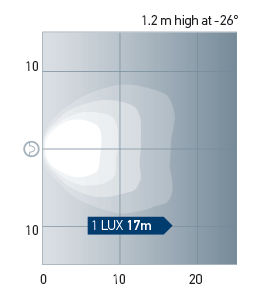

Light Output
