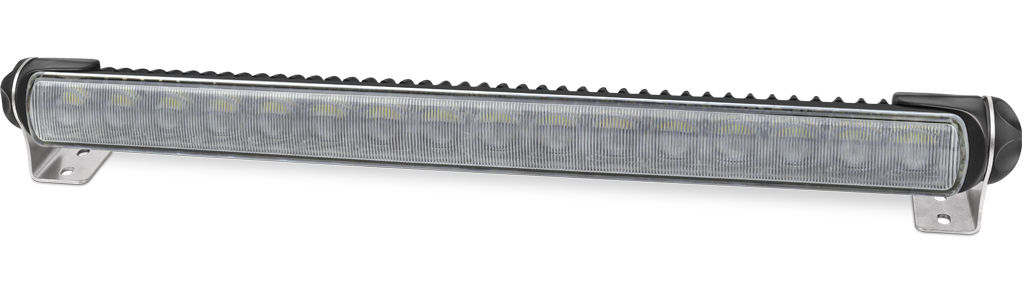

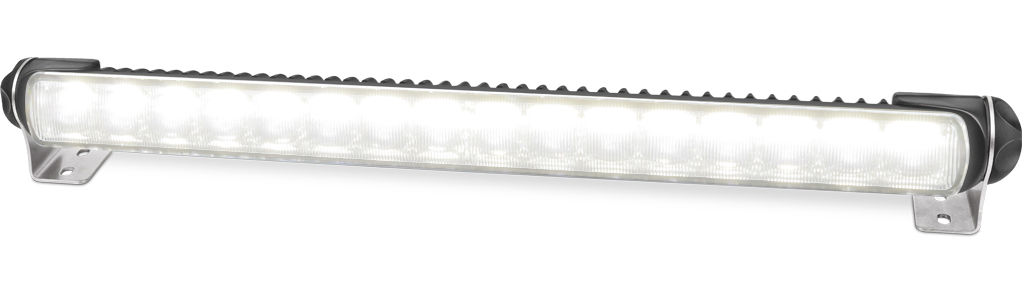

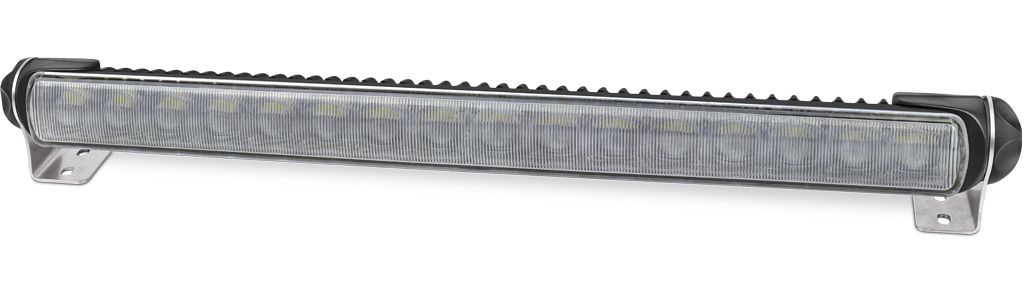

BL470 LED Work Lamp

The BL470 work lamp is available in Close and Long Range options, and is suited to an array of applications like agriculture and construction.

It is a high performance lamp with a light output of 2800 lumen. Multivolt™ circuitry means the lamp can be used with both 12V or 24V DC systems, whilst only consuming 36W on high or 4W on low. Any input between 9 to 33 volts will give optimum brightness. The dual function level (100% and 10%) is also handy for reducing power consumption during long term use, or when operating on battery power.

The adjustable mounting system ensures for easy installation and flexibility for any orientation. Providing unmatched corrosion resistance due to an innovative thermally conductive polymer housing, and the toughness of a UV, chemical and impact resistant Grilamid® lens, the BL470 is the natural choice when exceptional durability and long term reliability in demanding environments is needed.

Designed with Fit and Forget durability in mind, the completely sealed BL470 is covered by a 5 year warranty.

• Powerful 2800 lumen light output*
• Low power consumption (36W or 4W)

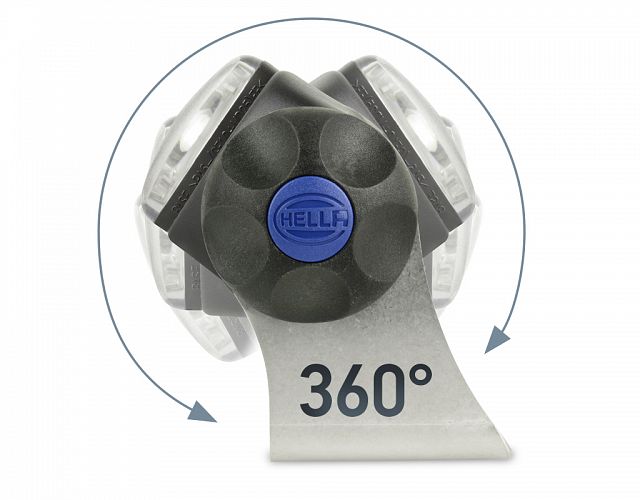

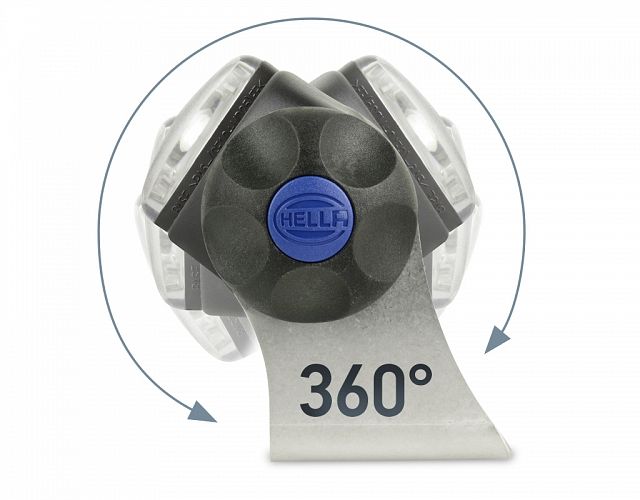

• Highly adaptable mounting system
• High resistance to corrosion
• Totally impervious to the environment

†The Sea Hawk-470 Light Bar - Spot Beam is a marinised alternative for the previous BL470 LED Work Lamp - Long Range.

*Luminaire Performance refers to the real performance of the lamp, not the much higher theoretical performance of the LEDs, as is often used.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Grilamid<sup>®</sup> is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Grilamid® Lens

Grilamid® is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Corrosion Proof

Benefits include strength and corrosion resistance.

Stainless Steel Bracket

Benefits include strength and corrosion resistance.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Light intensity can be switched between 100% and a lower level factory pre-set value, usually via
an additional cable input supplied with the lamp using a positive feed from the DC power supply within the lamps operating voltage range.

Dual Intensity Switch Control

Light intensity can be switched between 100% and a lower level factory pre-set value, usually via an additional cable input supplied with the lamp using a positive feed from the DC power supply within the lamps operating voltage range.

Made in New Zealand

Options

BL470 LED Work Lamp - Close Range

PART NO: 1GJ 958 130-621

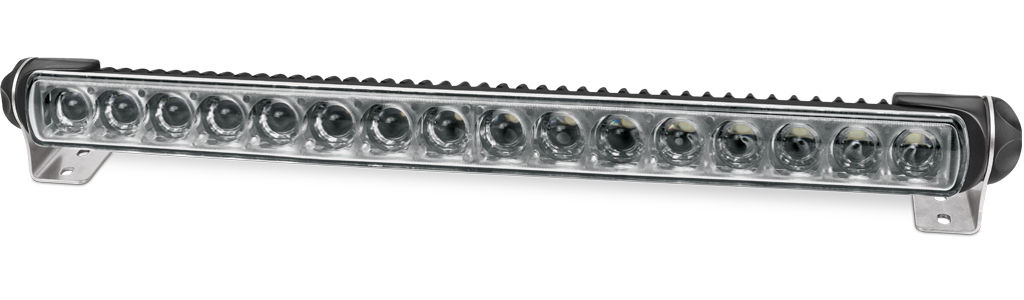

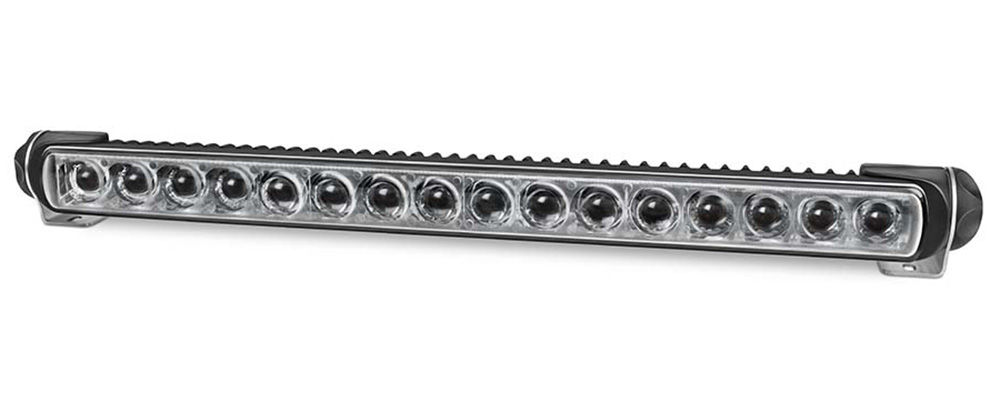

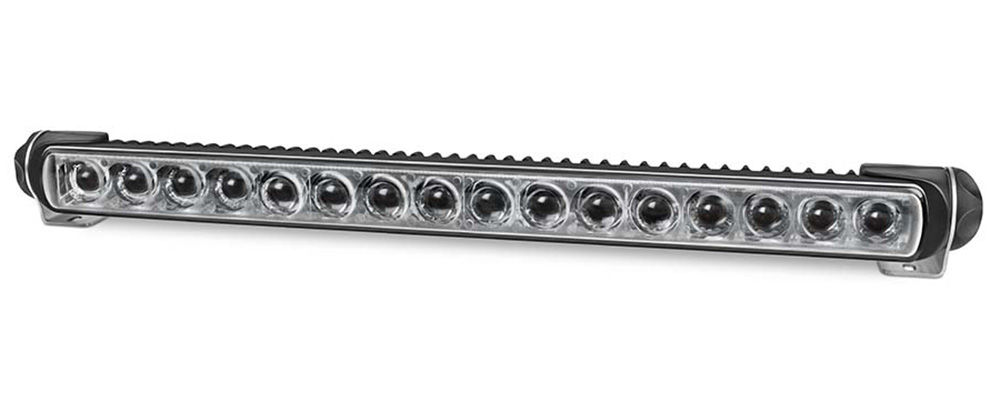

Sea Hawk-470 Light Bar - Spot Beam

PART NO: 2LT 958 130-631

Specifications

Mounting

Upright or pendant.

Voltage

Multivolt™ for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

High:         36W
Low:           4W

Max. Light Output

High:          2800 lumen
Low:             280 lumen

Protection

Reverse polarity and voltage spike protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 2.5m of sheathed multi core cable.

Lens Material

Heavy duty Grilamid®

Accessories

8HG 958 128-811 HD double mount stainless steel feet (one pair)

Compliance

CE CE ECE R10 UKCA

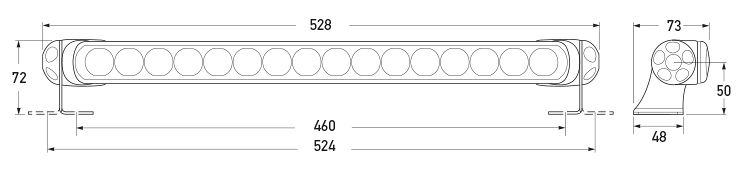

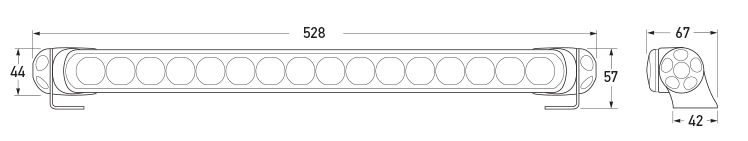

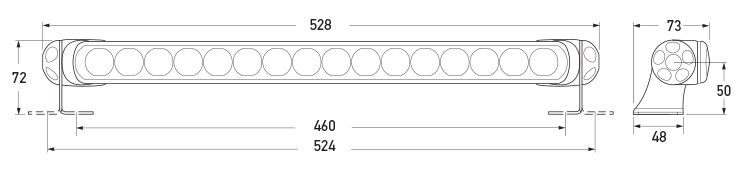

Outline

BL470 LED Work Lamp - Close Range
BL470 LED Work Lamp - Close Range
Sea Hawk-470 Light Bar - Spot Beam <br>All dimensions in mm
Sea Hawk-470 Light Bar - Spot Beam
All dimensions in mm

Light Output

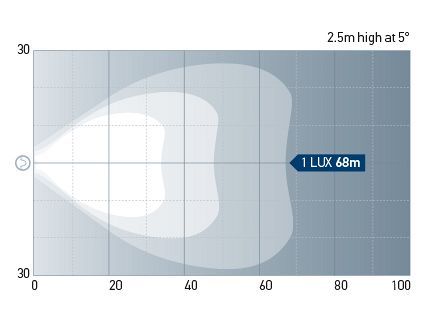

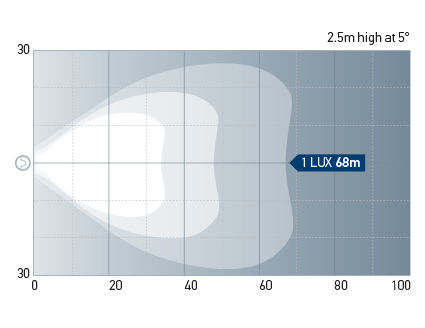

Beam pattern: Close Range
Beam pattern: Close Range

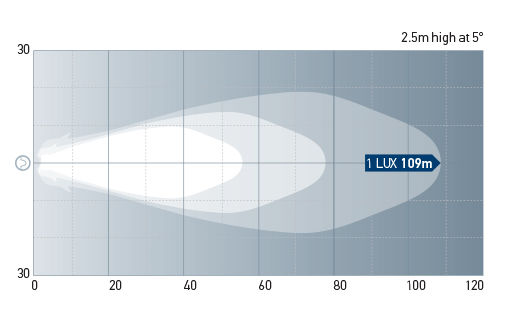

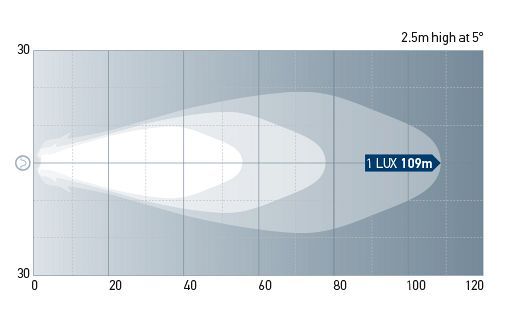

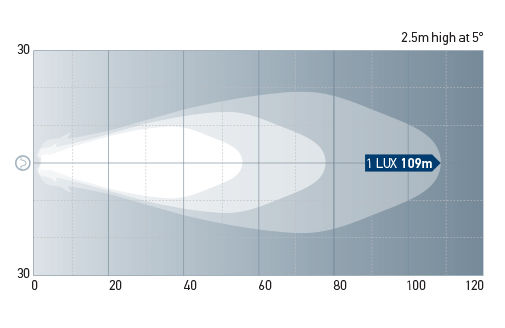

Beam pattern: Spot beam
Beam pattern: Spot beam

Documents

Document File Name File Size
  EC_DoC_958_130-XXX_BL-470_Lightbars+Work_Lamps_(13-11-19).pdf 303.37 KB
