HELLA

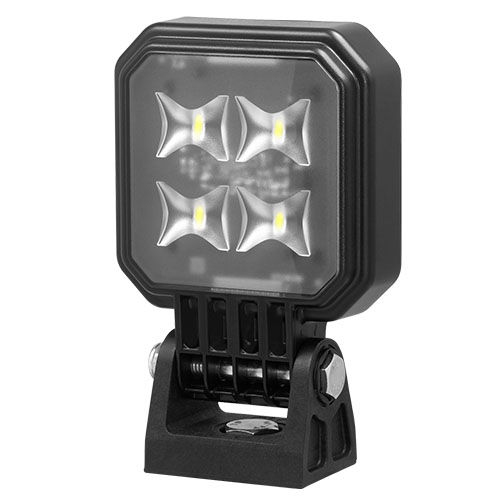

Q110R Reversing Lamp

The Q110R reversing lamp delivers 1150 lumens of light in an incredibly compact form factor, making it ideal for challenging rearward mounting locations. A thermally conductive housing combined with over-temperature protection ensures safe, reliable operation while maintaining lighting efficiency.

The ECE approved 20° inclination* supports space-saving installation where mounting space is limited.

*Meets ECE-148 approval for Reversing Lamps when inclined at 20° mounting angle.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

GGVSEB (previously GGVS) stands for the German regulation on carriage of dangerous goods by road, rail and inland waterway.

GGVSEB/ADR Regulation

GGVSEB (previously GGVS) stands for the German regulation on carriage of dangerous goods by road, rail and inland waterway.

Corrosion Proof

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Options

Q110R Compact Reversing Lamp - DT Connector

Q110R Compact Reversing Lamp - DT Connector

PART NO: 2ZR 996 285-501

Add to favourites

Specifications

Mounting

Suitable for upright or pendant mounting.
Lamps incline 20° downwards for ECE approval*

Voltage

Multivolt™ for optimum brightness at input voltages from 10 to 32 volts.

Power Consumption

11W

Max. Light Output

1150 lumen

Materials

Housing: Thermally conductive plastic
Bracket: Glass fibre reinforced plastic

Colour Temperature

5700 Kelvin

Temperature range

-40°C to +85°C (overheating protection)

Protection
Reverse polarity protection.
IP6K7 (Protection against dust and prolonged water immersion)
IP6K9K (Protection against dust and high-pressure/steam jet cleaning)

Connection

1m of multi-core cable with DT socket

Compliance
ECE R10, ECE R148, ADR/GGVSEB     CE

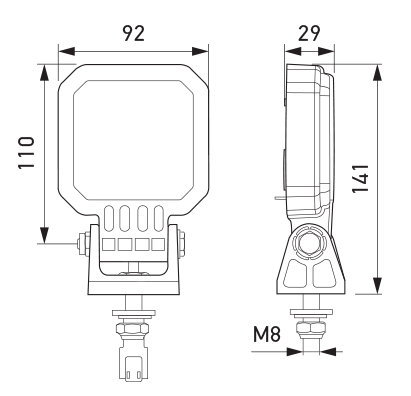

Outline

All dimension in mm.
All dimension in mm.

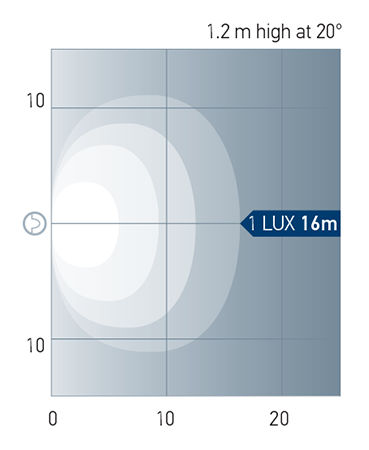

Light Output

Documents

Document File Name File Size
  HELLA Q110R Reverse Lamp_Web.pdf 437.75 KB
