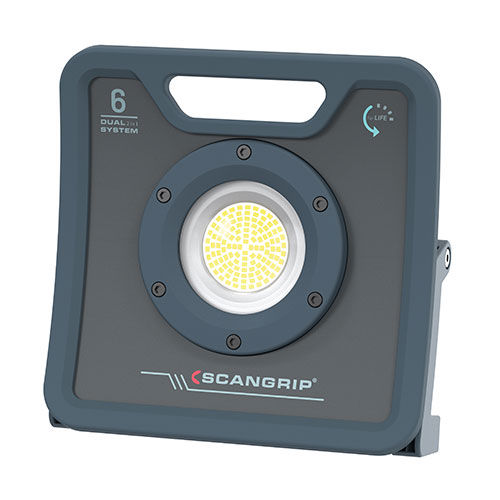

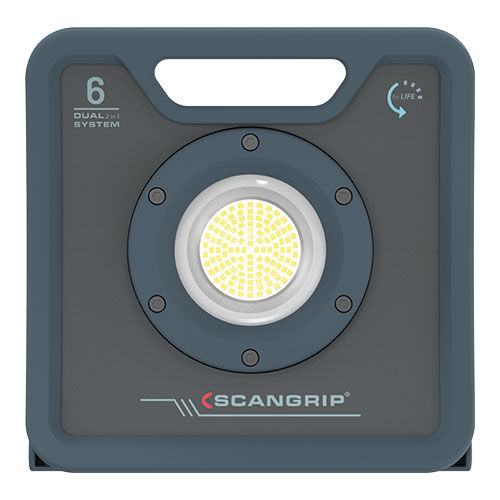

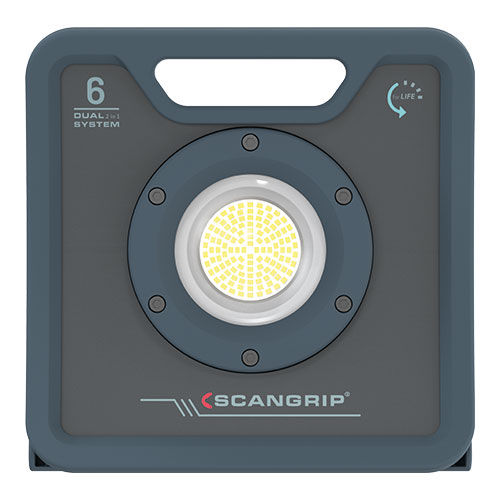

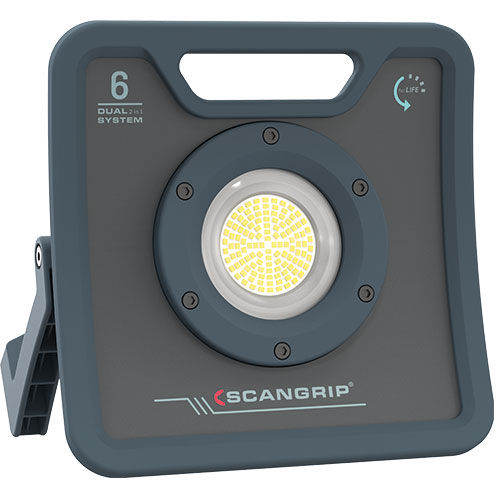

SCANGRIP® Nova 6K C+R For Life Work Lamp

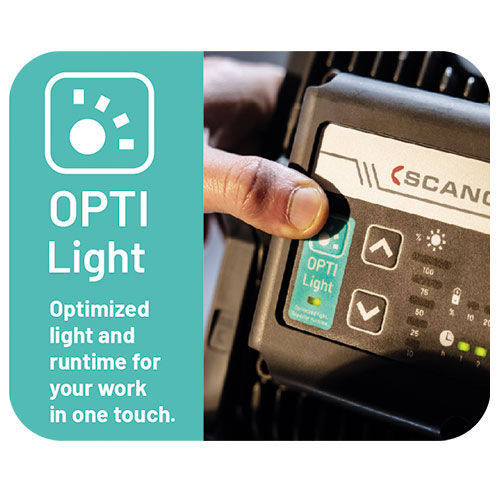

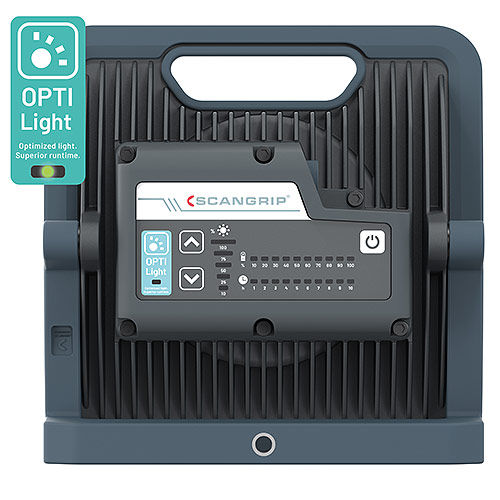

NOVA 6 C+R is an all-round LED floodlight designed for professionals, delivering up to 6000 lumen, 6 levels of illumination, and a clear display of runtime, battery capacity, and light output. The OPTILight automatic lighting adjustment mode offers optimised light and runtime with a simple touch.

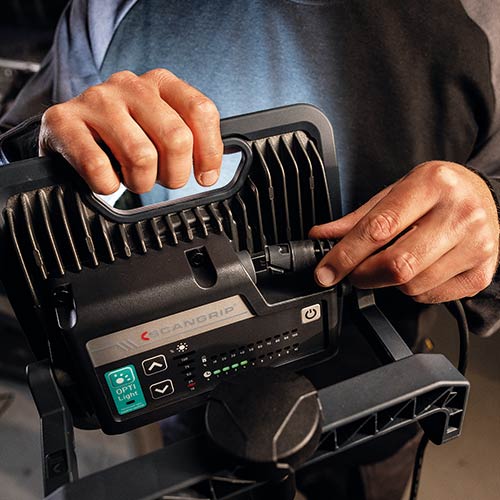

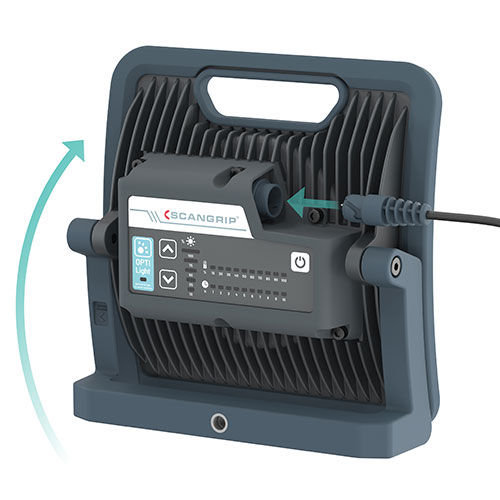

The DUAL SYSTEM power supply provides flexibility on the work site, operating from either an internal rechargeable battery or 240V input via an included 5m power cable.

Designed to perform consistently in tough work environments, NOVA 6 C+R is extremely durable and resistant to water and dust (IP67). Equipped with an integrated carrying handle and flexible bracket for easy transportation and mounting on a SCANGRIP TRIPOD, the NOVA 6 C+R work light is versatile and suited for various working environments.

A complete range of accessories including SCANGRIP tripod, dual bracket, magnetic mount and scaffolding brackets increase versatility and make the Nova work lamps perfect for all working applications.

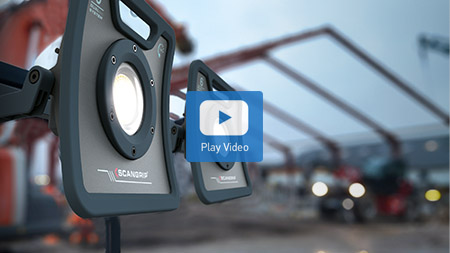

Scangrip NOVA 6 C+R Video Image

NOTE: This lamp replaces 035443AU SCANGRIP NOVA 6 C+R.

• Up to 6000 lumen
• 6 output levels + OPTILight function
• Dual Power: Battery or Wired

• Natural light – colour similar to daylight
• Strong, sturdy and resistant to water, oil and chemicals

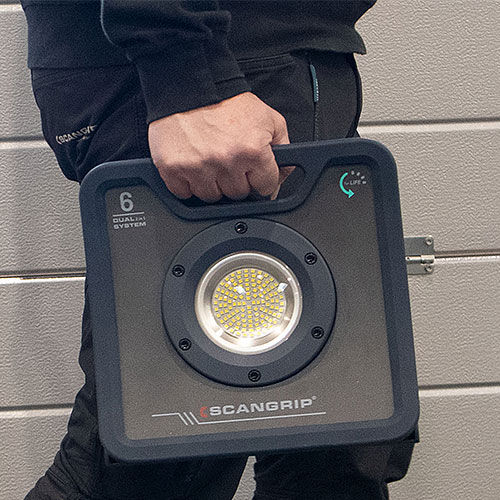

• Integrated carry handle

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

Battery Powered

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Light intensity is controlled through the lamp’s own internal circuitry via in-built buttons, an external DC power source and a standard switch. See specific lamp instructions for further information.

Dimmable Internal Dimmer

Light intensity is controlled through the lamp’s own internal circuitry via in-built buttons, an external DC power source and a standard switch. See specific lamp instructions for further information.

Options

SCANGRIP Nova 6K C+R

PART NO: 036205AU

Specifications

Voltage

100-240V AC - 50/60Hz (Cable)
18V (Battery)

Light Output

6000 lumen @ 100% (High) 4500 lumen @ 75% 3000 lumen @ 50%
1500 lumen @ 25% 600 lumen @ 10% (Low)

Power Consumption

37W max

Operating Time

LO: up to 15 hours
HIGH up to 1.5 hours
OPTILight up to 4.5 hours

Temperature Range

-10°C to +40°C

Protection

IP67 (Protection against dust and water splash)
IK07 Impact Protection to 2m

Battery

18V / 3200 mAh Li-ion rechargeable
3.5 hour charging time

Cable Length

5m of cable (2x0.75 mm2 H05RN-F)

Accessories

2XM 530 302-270 C+R car adaptor
2XM 530 302-245 SCANGRIP tripod
2XM 530 302-247 Dual mount bracket
2XM 530 302-249 Magnetic mount bracket
2XM 530 302-269 Scaffolding mount bracket

Compliance

CE

Documents

Document File Name File Size
  03.6205-nova-6-c-r-for-life-manual-optim.pdf 2.46 MB
  036205AU Scangrip Nova 6 C+R For Life Product Release.pdf 524.62 KB
