SCANGRIP® MAG PRO Wireless Rechargeable LED Inspection Lamp & Charging Pad Kit

This kit includes the updated MAG PRO Wireless Rechargeable LED Inspection Lamp with Autolight, and the Charging Pad Accessory:

035928 Scangrip Wireless Charging Pad for MAG PRO

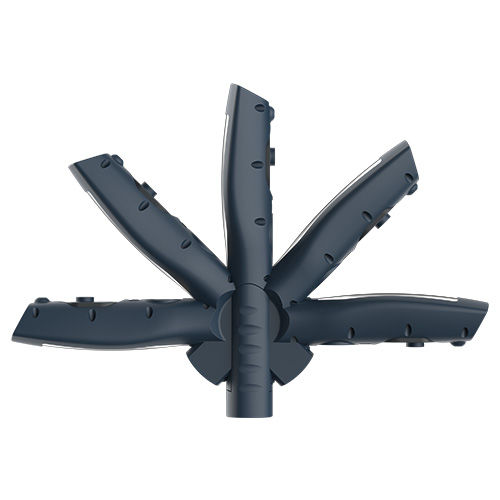

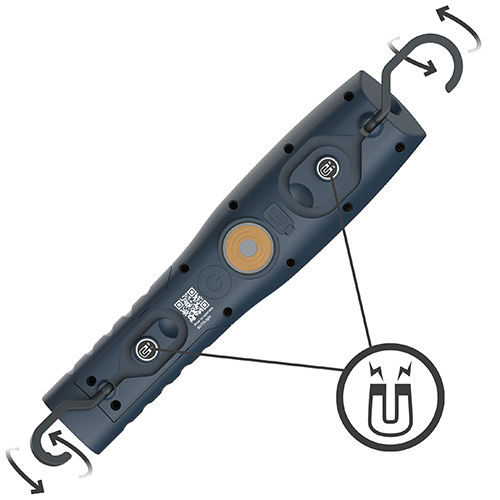

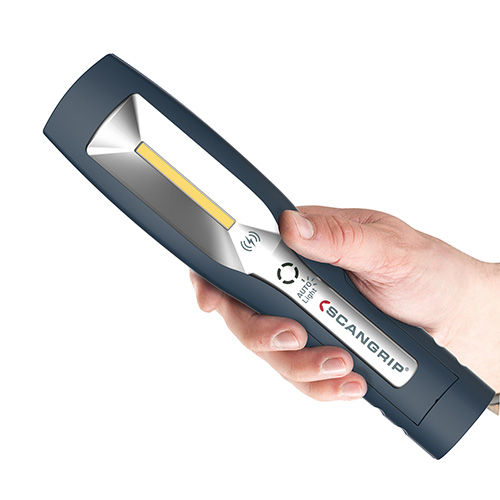

MAG PRO WIRELESS is made for efficient workshop operation through complete flexibility, using three strong built-in magnetic holders and the two retractable suspension hooks. This provides for flexible placement of the work light wherever you need it. The modern design of the MAG PRO WIRELESS offers an ergonomic and user-friendly grip, and the flexibility of the lamp head allows tilting up to 180 degrees.

The AUTOLight function makes the lamp turn on automatically when it is removed from the charging pad, and turn off when it is docked again. If a power cut is detected while the lamp is on the pad, it switches on to provide emergency lighting.

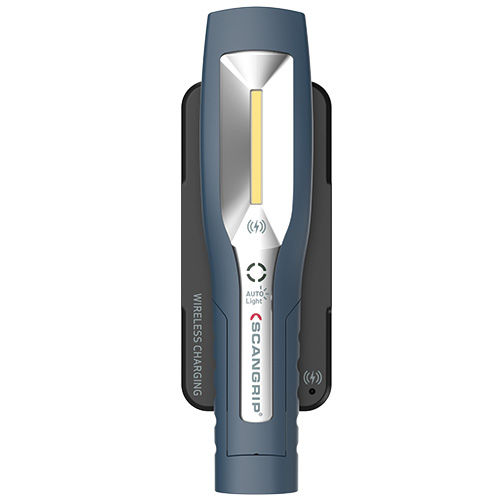

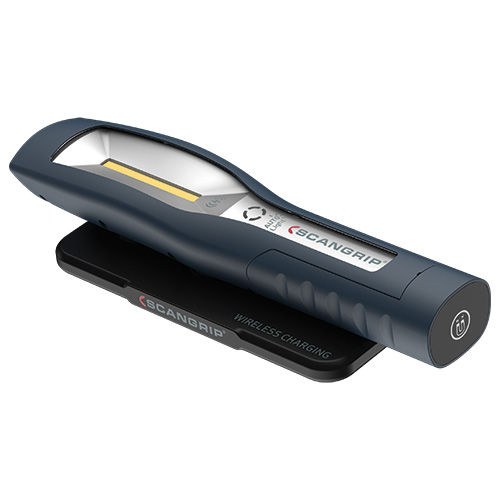

The charging pad is designed so the work light automatically “slides into place” over the powerful magnets on the back, meaning that MAG PRO WIRELESS can be charged in either horizontal or vertical positions. The charging plate is prepared for fixed mounting in the workshop. Simply remove the two plugs and mount the pad with two 4mm screws.

MAG PRO WIRELESS can also be charged with the included USB-C charging cable. The MAG series consists of universal and powerful multipurpose work lights that all professional users must have!

• High power LEDs.
• Stepless light control.
• Strong built-in magnet.
• Easy to use.
• WIRELESS inductive charging option using included Charging Pad
• AUTOLight function
• USB-C charging
• Impact and shock resistant.
• Natural light – colour similar to daylight.
• Low current consumption, high efficacy.
• Strong, sturdy and resistant to water, oil and chemicals.

 This Kit is an update to the previous Kit 490515.

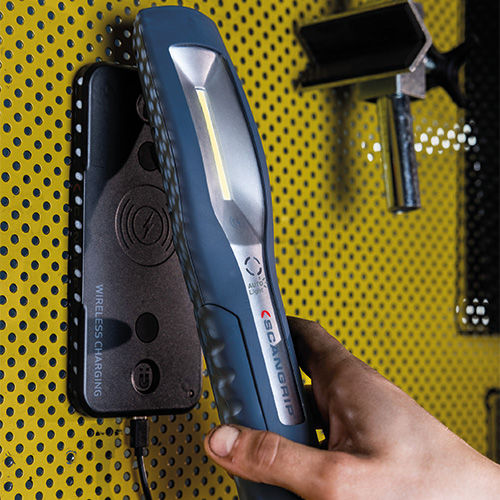

Scangrip MAG PRO Wireless Work lamp on wall mounted charging pad



To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

Battery Powered

Strong Built-in Magnet

Built-in Magnet

Strong Built-in Magnet

3 Year Warranty

Options

SCANGRIP® MAG PRO Wireless Rechargeable LED Inspection Lamp & Charging Pad Kit

PART NO: 035825
Legacy PN: 2XM 530 302-489

Specifications

Light Output

Main: 600 lumen for up to 3 hours
60 lumen for up to 15 hours
Spot (top): 150 lumen for up to 3 hours

Light Performance

Main: 900 lux @ 0.5m
Spot (top): 2000 lux @ 0.5m

Temperature Range

-10° to +40°C

Protection

IP 54 (MAG PRO Wireless)
IP 20 (Charging Pad)

Battery

3.7V/2600 mAh Li-ion rechargeable.
Charging time: 4 hours via USB-C / 7 hours via Wireless Charging Pad.

Compliance

CE

Note

Includes 1m USB-C lead

Included Products

Scangrip MAG PRO Wireless Rechargeable LED Inspection Lamp with AUTOLight
Scangrip Wireless Charging Pad for MAG PRO

Documents

Document File Name File Size
  035825-mag-pro-wireless-manual.pdf 2.40 MB
