SCANGRIP® Wireless Charging Pad for MAG PRO Wireless

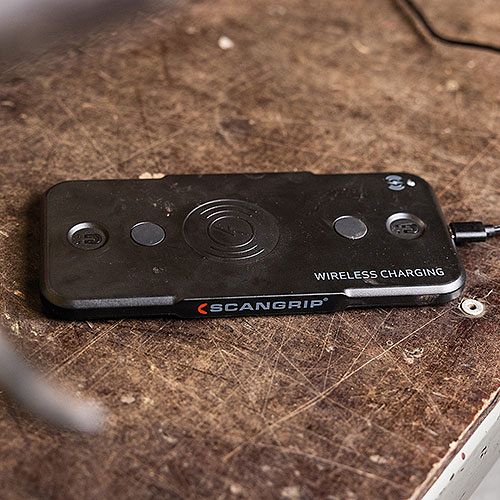

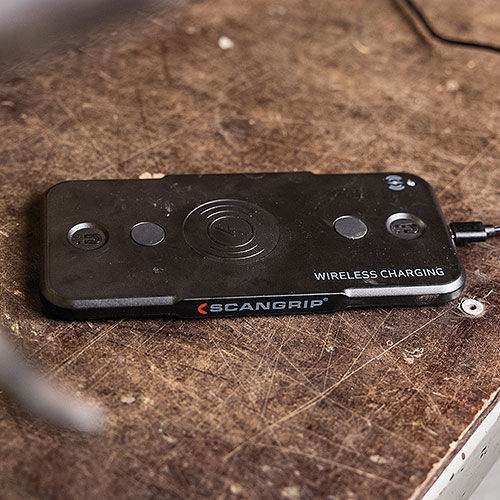

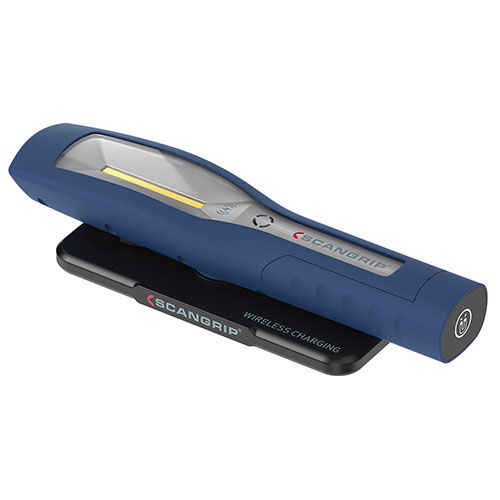

Utilising the latest technology in battery charging, the intelligent SCANGRIP CHARING PAD provides easy and fast automatic charging of the MAG PRO WIRELESS work lamp, and also acts as a convenient storage location for the lamp in the workshop.

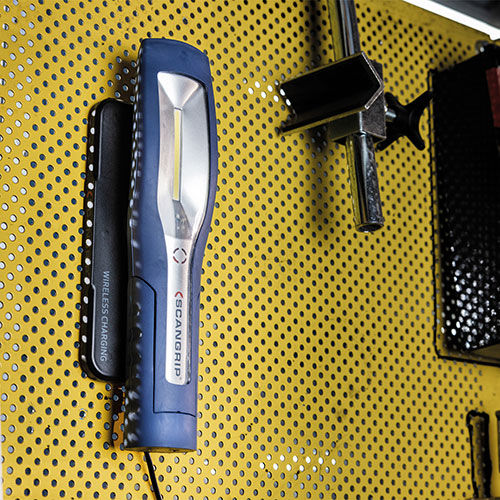

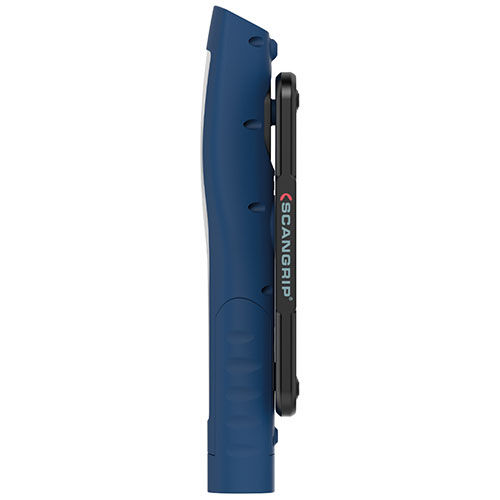

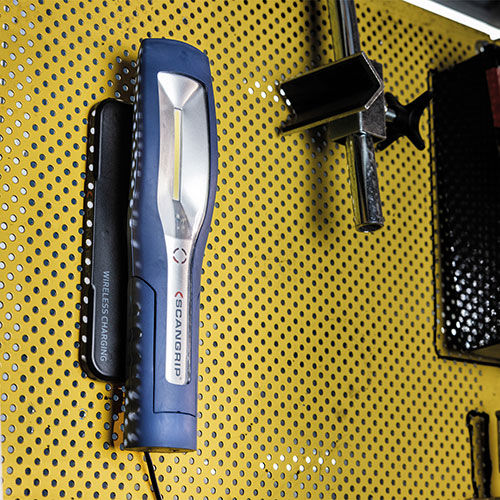

The charging pad is designed so that the lamp automatically “slides into place” over the powerful magnets on the back. With its compact design, the ultra-thin charging pad can be mounted almost anywhere and securely hold the lamp. Mount it on the workbench, the wall, or even under the ceiling, simply by removing the two screw caps and using two four-millimetre screws.

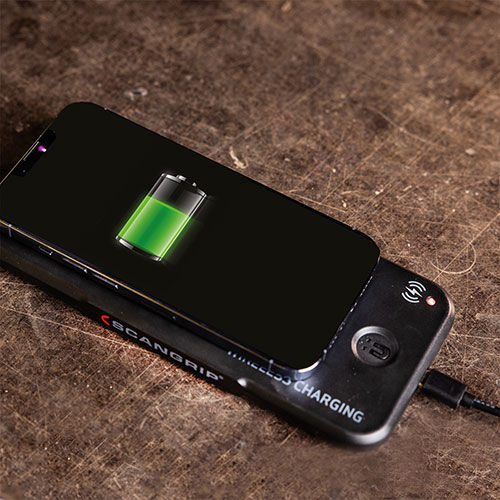

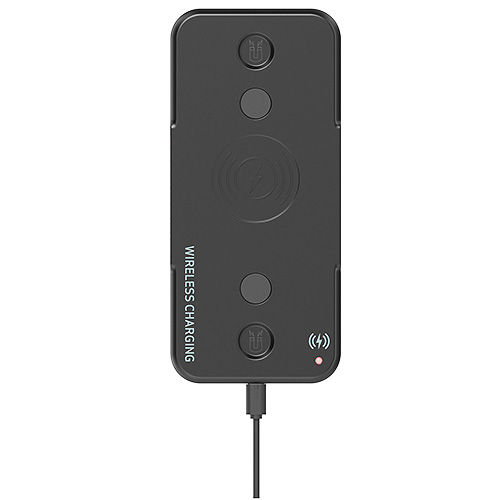

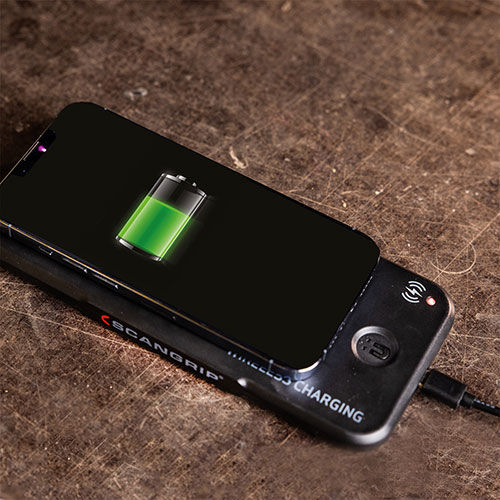

Intelligent object detection means that the charging pad can also be used for charging most mobile phones and other compatible devices. The red LED informs the status of the charging pad. It flashes 5 times when powering up and once every 10 seconds when on standby. While charging it is lit constantly and flashes quickly if an error is detected.
To find a HELLA reseller near you, click here.
Rollover/tap the icons below for further details:
LED Technology
Built-in Magnet
Strong Built-in Magnet
Specifications
Charger Input |
100-240V AC 50-60Hz 0.2A |
Charger Output |
5V DC/ 1.0A |
Temperature Range |
-10° to +40°C |
Protection |
IP20 |
Dimensions |
261mm x 62mm x 43mm |
Compatible with |
035691 MAG PRO Wireless Rechargeable LED Inspection Lamp |
Documents
Document | File Name | File Size |
---|---|---|
035928 SCANGRIP MAG PRO Wireless Charging Pad Product Release Flier_Web.pdf | 1.28 MB | |
03.5928_scangrip-charging-pad_manual.pdf | 748.36 KB |
