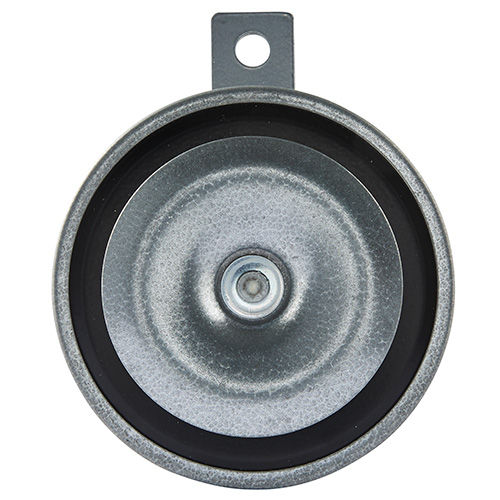

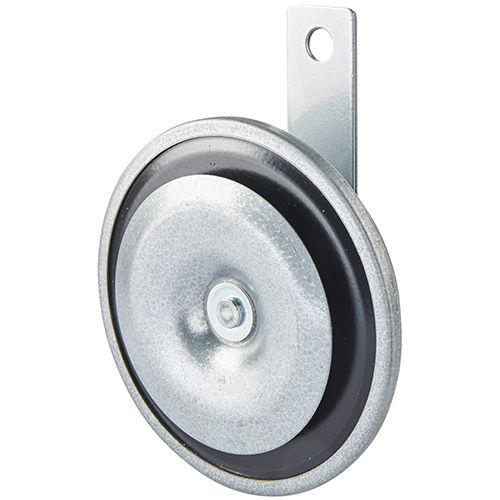

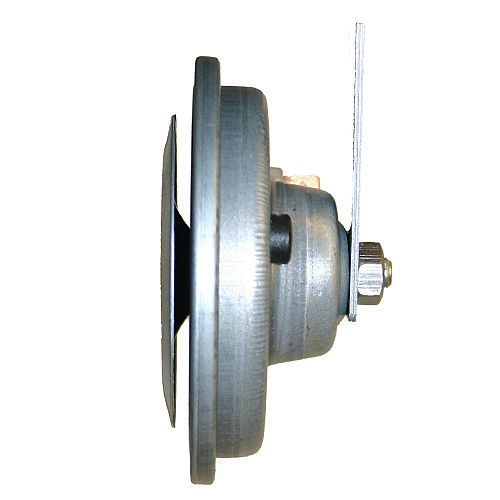

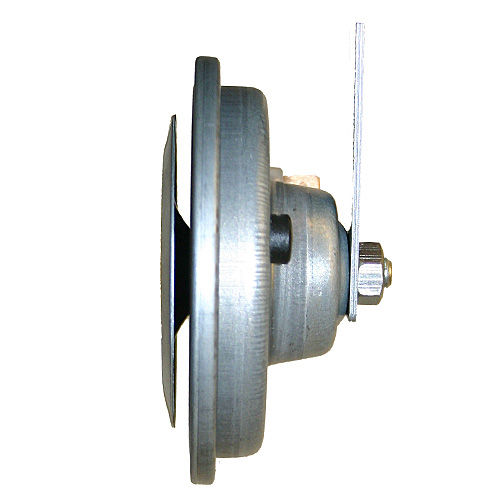

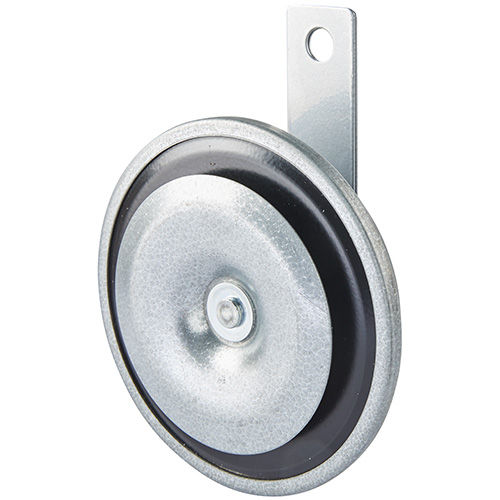

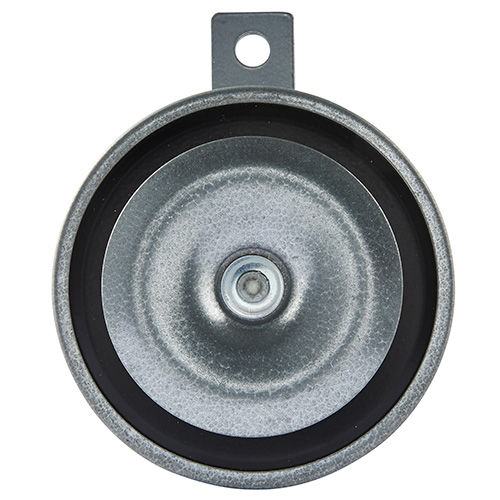

M26 Series Disc Horns - Rich Tone
M26 Series Disc horns are rated at 115dB, 3 times louder as the previous models, offering additional awareness and safety with a strong and focussed sound in either Low or High tone options.
Models available with optional Teflon pellet humidity protection.
- 3x LOUDER than previous models
- Penetrating, long-range sound for extra safety
- High Quality, Rich Tone
- Enhanced quality and durability
To find a HELLA reseller near you, click here.
Rollover/tap the icons below for further details:
12 Volt
Suitable only for 12VDC applications.
24 Volt
Suitable only for 24VDC applications.
UV Resistant
HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.
2 Year Warranty
Options
M26 Horn 12V, 335 Hz, Low Tone (Teflon pellet)
PART NO: 3AL 002 952-861
M26 Horn 12V, 400 Hz, High Tone (Teflon pellet)
PART NO: 3AL 002 952-811
M26 Horn 24V, 335 Hz, Low Tone
PART NO: 3AL 002 952-871
M26 Horn 24V, 400 Hz, High Tone (Teflon pellet)
PART NO: 3AL 006 958-821
Specifications
Mounting |
Single bolt mounting |
||||
Diameter |
97mm |
||||
Voltage |
Single Voltage: 12V DC (9.5-15V) or 24V DC (21-29V) |
||||
Frequency |
335 Hz (low tone) / 400 Hz (high tone) |
||||
Sound level |
115 dB(A) @ 2m |
||||
Power Consumption |
12V horns: 66W / 24V horns: 84W |
||||
Current Consumption |
12V horns: 5.5A / 24V horns: 3.5A |
||||
Operating Temperature |
-40°C to +60°C |
||||
Protection |
|
||||
Lifetime |
50,000 cycles |
||||
Compliance |
ECE‑R28, E1 0020011 |

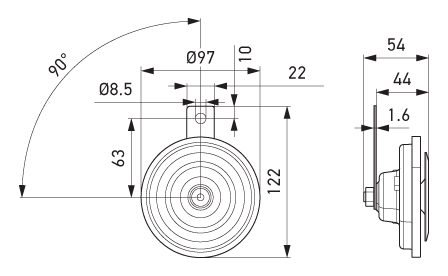

Outline
