LED Round Courtesy Lamps (White)

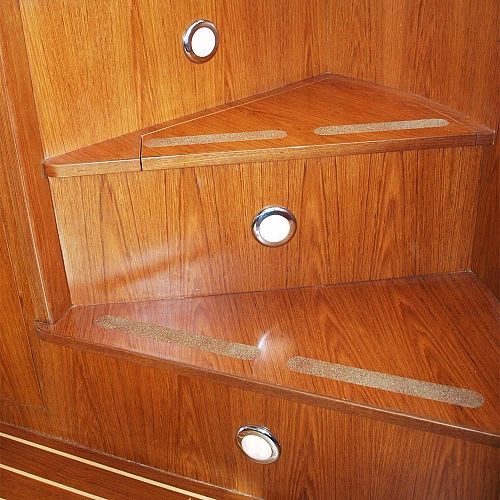

Attractive, energy efficient round White LED courtesy lamps for interior and exterior use. Available with a selection of rim finishes. Optic appears clear until illuminated.

Advanced lens technology provides an even spread of soft light without glare or eye strain. HELLA LED courtesy lamps consume a fraction of the energy of traditional bulb lamps and run very cool due to their low current draw, for safer installation into light weight materials. Each lamp is completely sealed, and highly shock, impact, and vibration resistant, suitible for any environment.

Includes a surface mounting ring with 3 x stainless steel screws. Additional rims and housings are available as spare parts.

RFCommSafe™ - To view and download more information please click here

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

12 Volt

Suitable only for 12VDC applications.

24 Volt

Suitable only for 24VDC applications.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Dimmable Analogue DC Input

Light intensity is reduced as the DC input voltage is reduced below the lamps specified operating voltage.

Made in New Zealand

Options

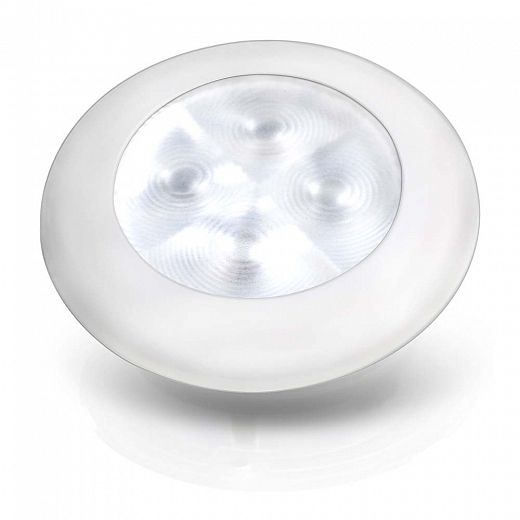

White Light. White Plastic Housing. 12V DC

PART NO: 2XT 980 500-541

Add to favourites

White Light. White Plastic Housing. 24V DC

PART NO: 2XT 980 501-541

Add to favourites

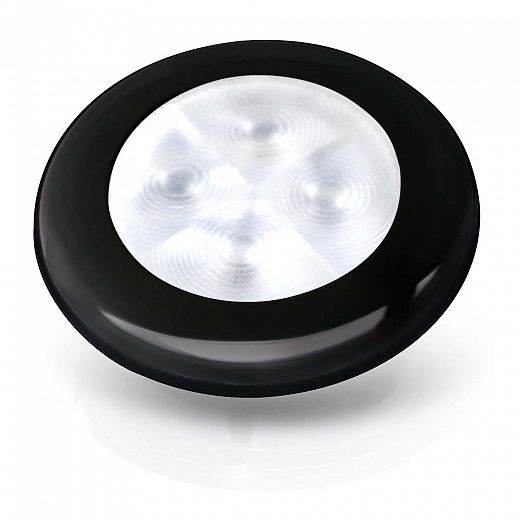

White Light. Black Plastic Housing. 12V DC

PART NO: 2XT 980 500-551

Add to favourites

White Light. Black Plastic Housing. 24V DC

PART NO: 2XT 980 501-551

Add to favourites

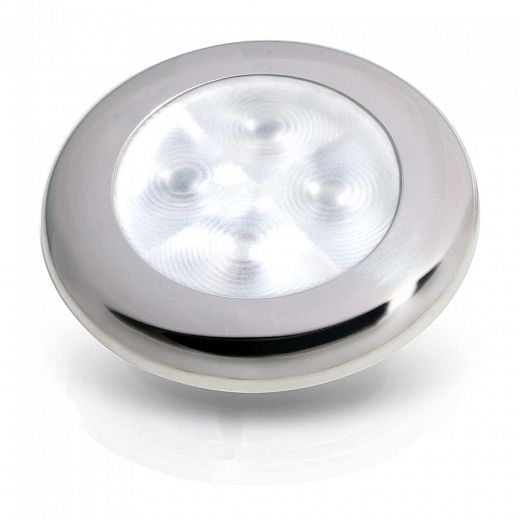

White Light. Stainless Steel Housing. 12V DC

PART NO: 2XT 980 500-521

Add to favourites

White Light. Stainless Steel Housing. 24V DC

PART NO: 2XT 980 501-521

Add to favourites

Specifications

Optic	Optic appears clear until illuminated.

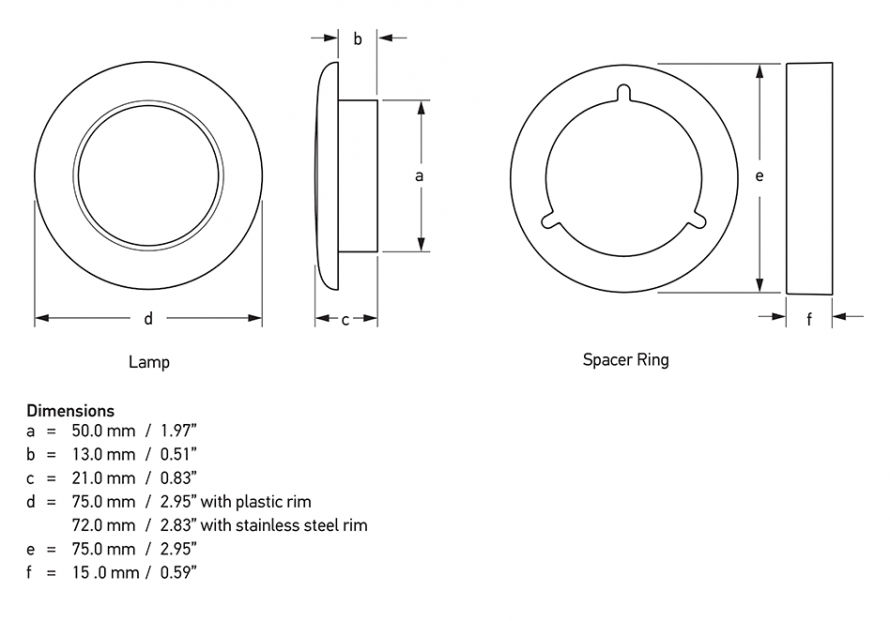

Mounting	Recess mount with 50mm diameter hole. Stainless steel screws included
Lens Material	UV resistant enhanced impact acrylic
Lens Material	UV resistant plastic. 316 stainless steel
Dimming	Dimmed via Hella marine Dimmer 5XA 998 572-001 or compatible dimmer
Operating Voltage	12V DC or 24V DC
Power Consumption	<0.5W (<0.042A @ 12V / <0.02A @ 24V)
Protection	Reverse polarity protection. IP67 (Completely Sealed)
Cable Length	120mm of tinned marine cable
